Circular Gauge ActiveX Control

Use circular gauge ActiveX control in your MFC project

1. Control using is simple, it can be used in VC, VB, C #, Delphi, C + + Builder. BeauGaugeFree.msi should be installed before using the control.

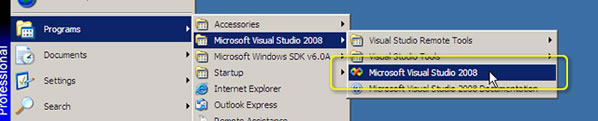

2. Launch Visual Studio 2008.

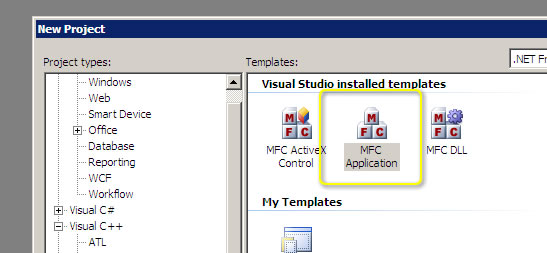

3. New a "MFC Application" project.

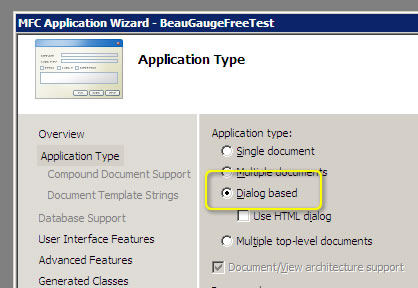

4. Select "Dialog based".

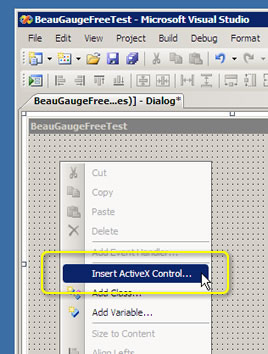

5. Right click the dialog and select "Insert ActiveX Control..." menu.

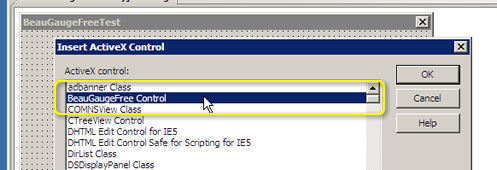

6. In "Insert ActiveX Control" dialog, select "BeauGaugeFree Control" and click "OK".

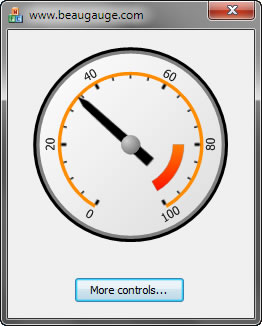

7. Control loading is done, see as below:

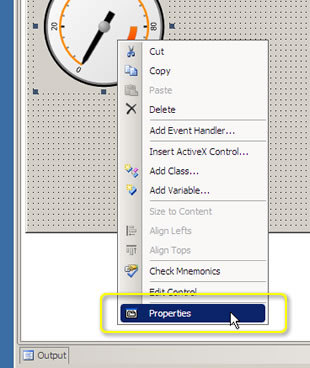

8. Select "Properties" in the right-click menu of the control.

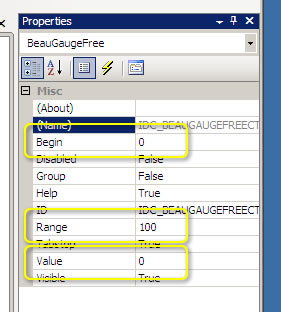

9. Properties Page.


10. The general range is 0~100, if you want to change it to 100~0, how?
Just modify the "Begin" and "Range" to 100, -100.

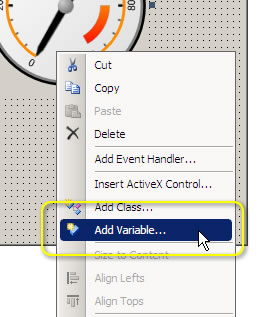

11. Right click the control and select "Add Variable...".

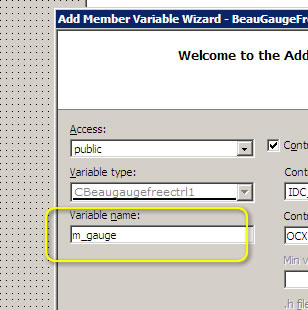

12. Input "m_gauge1" in the "Variable name" field.

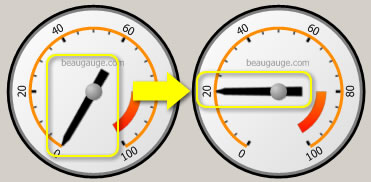

13. Change the pointer's location.
m_gauge.SetValue(20);
